Ansys Maxwell Motor Modeling

one-day course

This 1-day course provides an introduction to modeling motors using Ansys RMxprt and Ansys Maxwell.

During the course, students will build hands-on skills by setting up and solving a variety of simulation models during the workshop sections.

Prerequisites for this course are DRD’s Introduction to Maxwell course and practice gaining proficiency with Maxwell. DRD recommends that students who do not have those prerequisites delay attending this course until they attain them. This course does not assume any experience with RMxprt.

View the Course Schedule / Enroll in Live Virtual Training
On-Demand Course Recordings, Workshop Files, and PPT Slides (Password Required)
Section 1: Geometry Generation

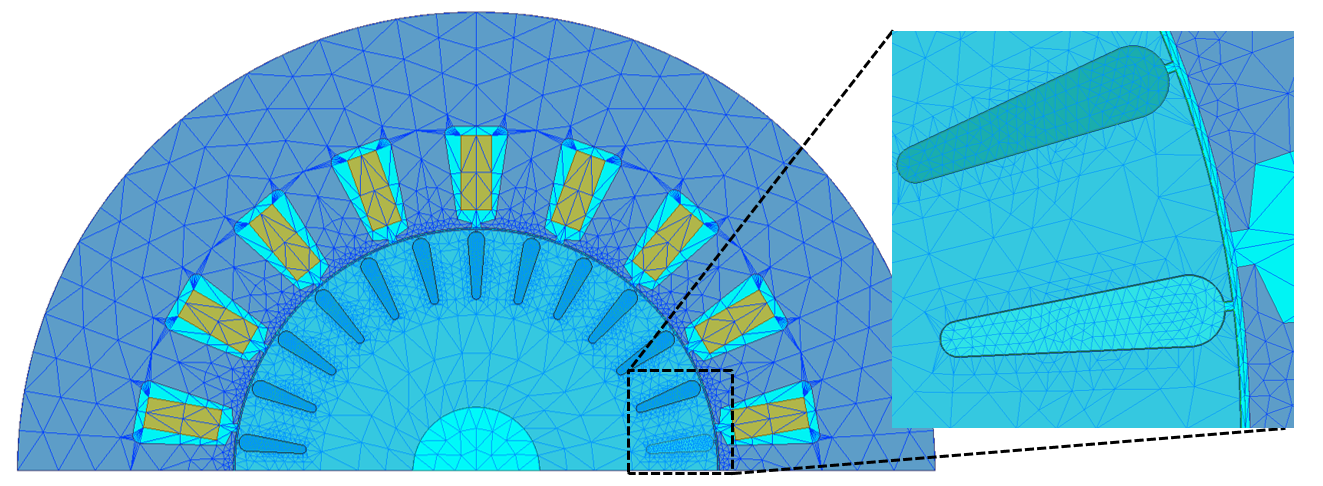

Workshop 2 – Motor Losses

This workshop explores an example induction motor to understand power loss prediction in Maxwell. It will show how to obtain these quantities during postprocessing, how to validate them through checking the power balance, and how to improve simulation accuracy on these results. RMxprt will be used to both analyze the motor and to generate Maxwell 2D and 3D models of the design.

Section 2: Cogging Torque
Workshop 1 – Cogging Torque Calculation

This workshop will discuss how to use ANSYS Maxwell to calculate the cogging torque in an example 3-phase permanent magnet machine. Both a parametric static and pseudo-static transient methodology will be explored.

Section 3: Mesh Operations for Rotating Machines
Workshop 3 – Demagnetization Due to Short Circuit

This workshop will discuss how to use Ansys Maxwell to study the variation of Permanent Magnet Rotating Machine performances due to short circuit and related high value external fields and permanent magnets demagnetization.

Section 4: Motor Power Balance

Workshop 4 – Using the Machine Toolkit on a PMSM Model

This workshop starts with an existing 3-phase permanent magnet synchronous machine model that’s set up to solve one operating point. The user will then use the Machine Toolkit extension to define the Design of Experiments runs which will populate the full operating space. Output maps such as efficiency, losses from different sources, torque vs. speed, and voltage/current in the d-q frame can be obtained for this design after running the DOE that the toolkit automatically creates.

Section 5: OptiSlang Coupling
Section 6: ECE Equivalent Circuit Extraction
Section 7: Demagnetization
Section 8: Machine Toolkit
Section 9: Inductor Machine Speedup
