Ansys nCode DesignLife Training
Two-day courseThe objective of this course is for attendees to develop a strong expertise in the use of Ansys nCode DesignLife for durability and fatigue analysis. The course also demonstrates several examples of setting up and solving DesignLife simulation within the native Mechanical GUI using the “Mechanical Embedded DesignLife” ACT extension. The course covers a broad array of topics focusing on stress life for high cycle fatigue to strain life for low cycle fatigue studies, duty cycle vibration fatigue to simulate virtual shaker table test, as well as seam weld fatigue on thin plate weldments meshed with shell finite elements to solid welds on thicker tubular structures.
The 2-day course includes training materials from Ansys, Inc. that delivers nine instructor-led lectures and ten workshops, as well as DRD Supplementary workshops that demonstrates additionally eight practical examples of fatigue covering different applications.
Prerequisites for this course are DRD’s Introduction to Ansys Mechanical course, and/or some level of proficiency with the Ansys Mechanical user interface.
Lecture 1: Introduction to CAE Fatigue
The goal of this workshop is to examine how Ansys nCode DesignLife interacts with Ansys Mechanical on the Workbench platform.
Lecture 2: Workbench/DesignLife Integration
Workshop 1: Introduction to the Ansys nCode DesignLife Interface
The goal of this workshop is to examine how Ansys nCode DesignLife interacts with Ansys Mechanical on the Workbench platform.
Lecture 3: Overview of DesignLife Interface
Workshop 2: Constant Amplitude Stress Life Fatigue Analysis
The goal of this workshop is to setup and solve Constant Amplitude Stress Life fatigue analysis using Ansys Mechanical and Ansys nCode DesignLife.
Lecture 4: Importing FE Results
Workshop 3: Import FE Model, Review Results, and Select Subsets
The goal of this workshop is to import FE model into Ansys nCode DesignLife, review the FE results and selectively choose subsets of the full model to run fatigue calculations.
Lecture 5: Materials Mapping
Workshop 4: Materials Assignment
The goal of this workshop is to learn how to modify material mapping.
Lecture 6: Load Mapping
Workshop 5: Time Series
The goal of this workshop is to learn how to use define time series load mapping in Ansys nCode DesignLife.
Workshop 5a: Time Step
The goal of this workshop is to learn how to use define time step load mapping in Ansys nCode DesignLife.
Lecture 7: Duty Cycles
Workshop 6: Duty Cycle
The goal of this workshop is to learn how to create and use duty cycle loading in Ansys nCode DesignLife.
Lecture 8: Overview of Stress Life Fatigue
Workshop 7: Stress Life Based Fatigue Assessments
The goal of this workshop is to examine multi-axial assessment methods and other factors affecting stress life calculations.
Lecture 9: Overview of Strain Life Fatigue
Workshop 8a: Constant Amplitude EN Analysis, Mean Stress Correction
The goal of this workshop is to examine mean stress effects on EN fatigue analysis.
Workshop 8b: Elastic/Plastic Correction vs. FEA Nonlinear BKIN Material Model
The goal of this workshop is to examine elastic-plastic correction in an EN fatigue analysis.
DRD Supplementary Workshops
Workshop 1: Fatigue Analysis of a Simple Shaft under Combined Bending and Torsion Loads
The goal of this workshop is to calculate the fatigue life of the drive shaft using Ansys nCode DesignLife time series loading. The stresses from unit bending and torsion load cases in Mechanical are paired with corresponding measured load histories to generate stress history that allows DesignLife to perform fatigue calculations using Rainflow Cycle Counting and damage assessment using Miner’s Rule.
Workshop 2: Fatigue Life Prediction for a Telecommunication Rack Subjected to El Centro Earthquake Seismic Loads
The goal of this workshop is to perform a full transient dynamic analysis within Ansys Mechanical and use the time history results to determine life of cabinet from this transient excitation in Ansys nCode DesignLife.

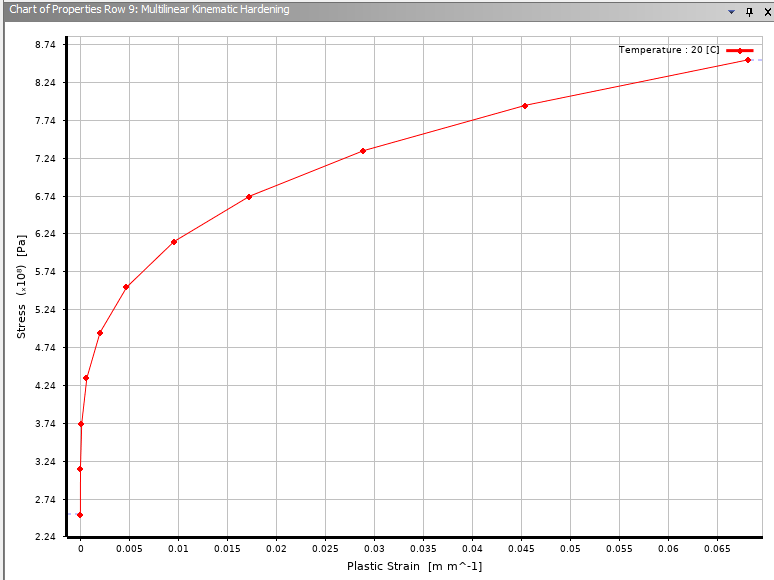

Workshop 3: Low Cycle Fatigue (LCF) using Nonlinear Stresses and Strains
The goal of this workshop is to evaluate strain life fatigue using nonlinear stresses and strains from Ansys Mechanical. The nonlinear material characteristic is defined using the Multilinear Kinematic Hardening plasticity.

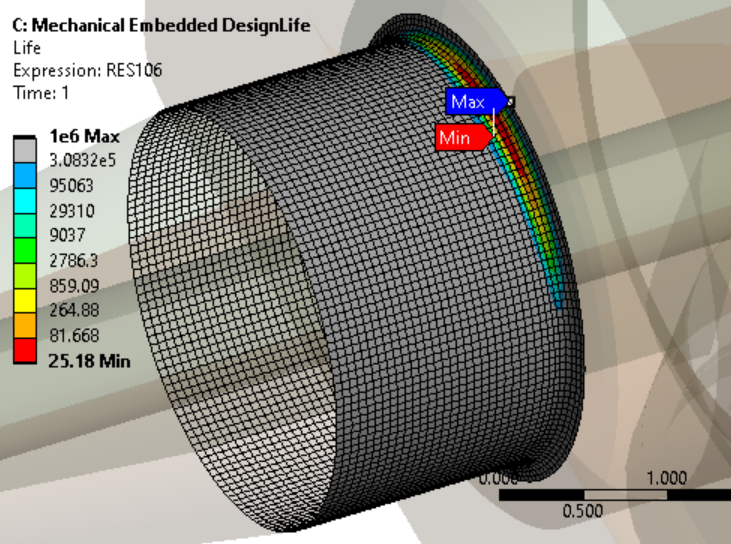

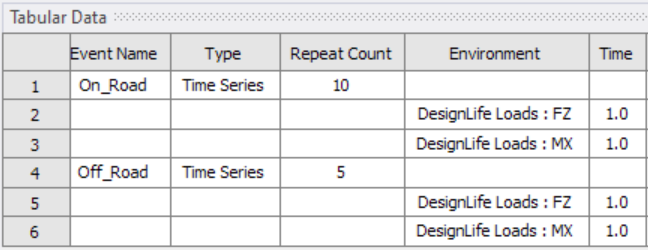

Workshop 4: Fatigue Analysis of a Trailer Spindle Subjected to Multiple Time Series Load Histories
The goal of this workshop is to evaluate fatigue life of a trailer spindle subjected to duty cycle loading within Ansys Mechanical using Mechanical Embedded DesignLife ACT extension.
Workshop 5: Virtual Random Vibration Shaker Table Test of a Marine Alternator Bracket
The goal of this workshop is to perform a vibration fatigue analysis using sequential multi-axis (3 axis) excitation of a marine alternator bracket to mimic a virtual shaker table test (VSTT) by using duty cycle loading in Ansys nCode DesignLife.
Workshop 6: Seam Weld Fatigue Analysis on a T-Joint Welded Assembly Meshed with Shell Finite Elements
The goal of this workshop is to perform a seam weld fatigue analysis in Ansys nCode DesignLife using the shell weld finite element model results from Ansys Mechanical.
Workshop 7: Seam Weld Fatigue Analysis on a T-Joint Welded Assembly Meshed with Shell Finite Elements using the Mechanical Embedded
DesignLife ACT Extension
The goal of this workshop is to perform a seam weld fatigue analysis within Mechanical using the “MechanicalEmbeddedDesignLife” ACT extension.
Workshop 8: Seam Weld Fatigue Analysis on a T-Joint Welded Assembly Meshed with Solid Finite Elements
The goal of this workshop is to perform a seam weld fatigue analysis in Ansys nCode DesignLife using the solid weld finite element model results from Ansys Mechanical.
